Air Hammer Series
Professional pneumatic forging hammers with proven reliability. Available in four configurations to suit diverse forging requirements.

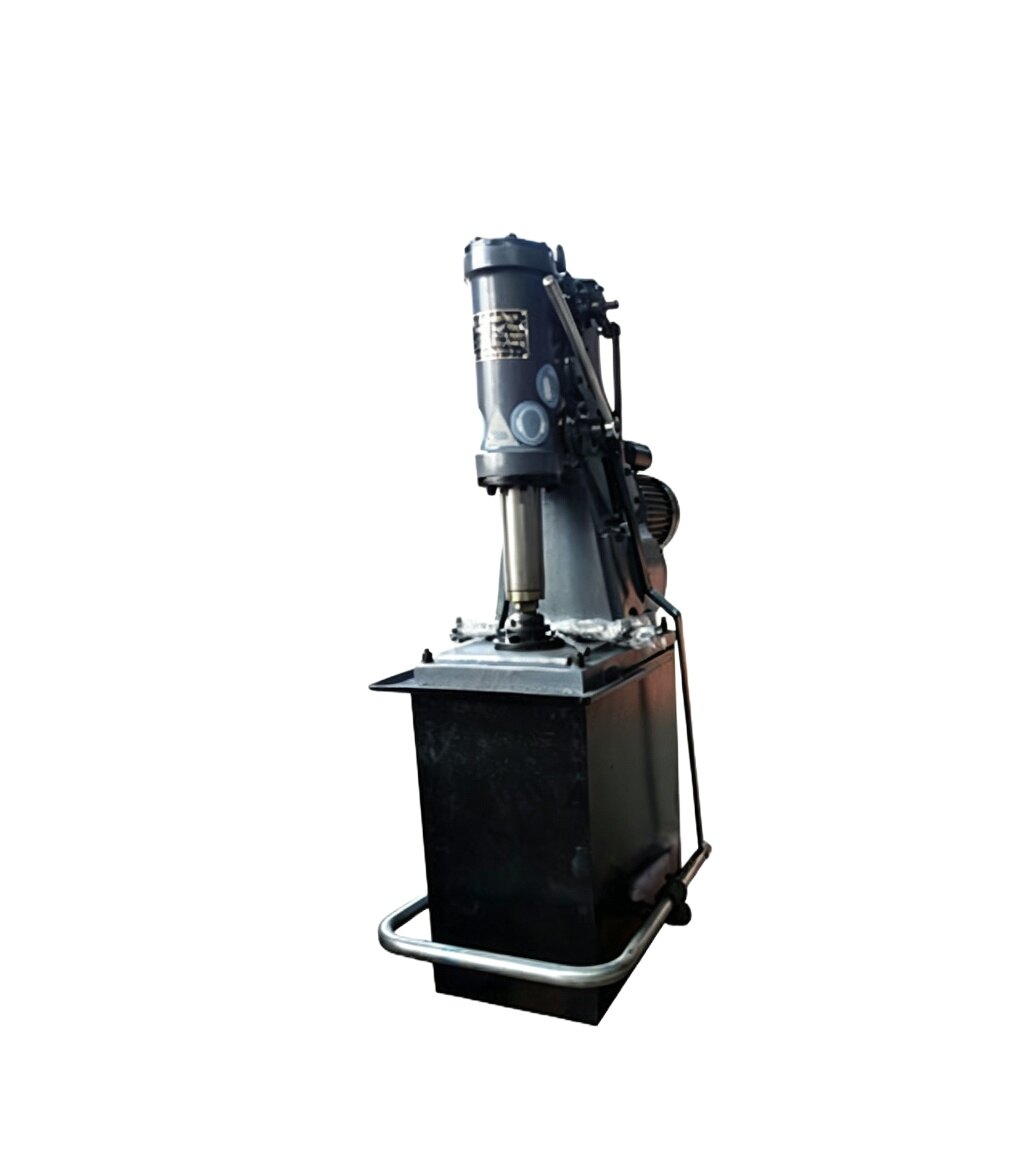

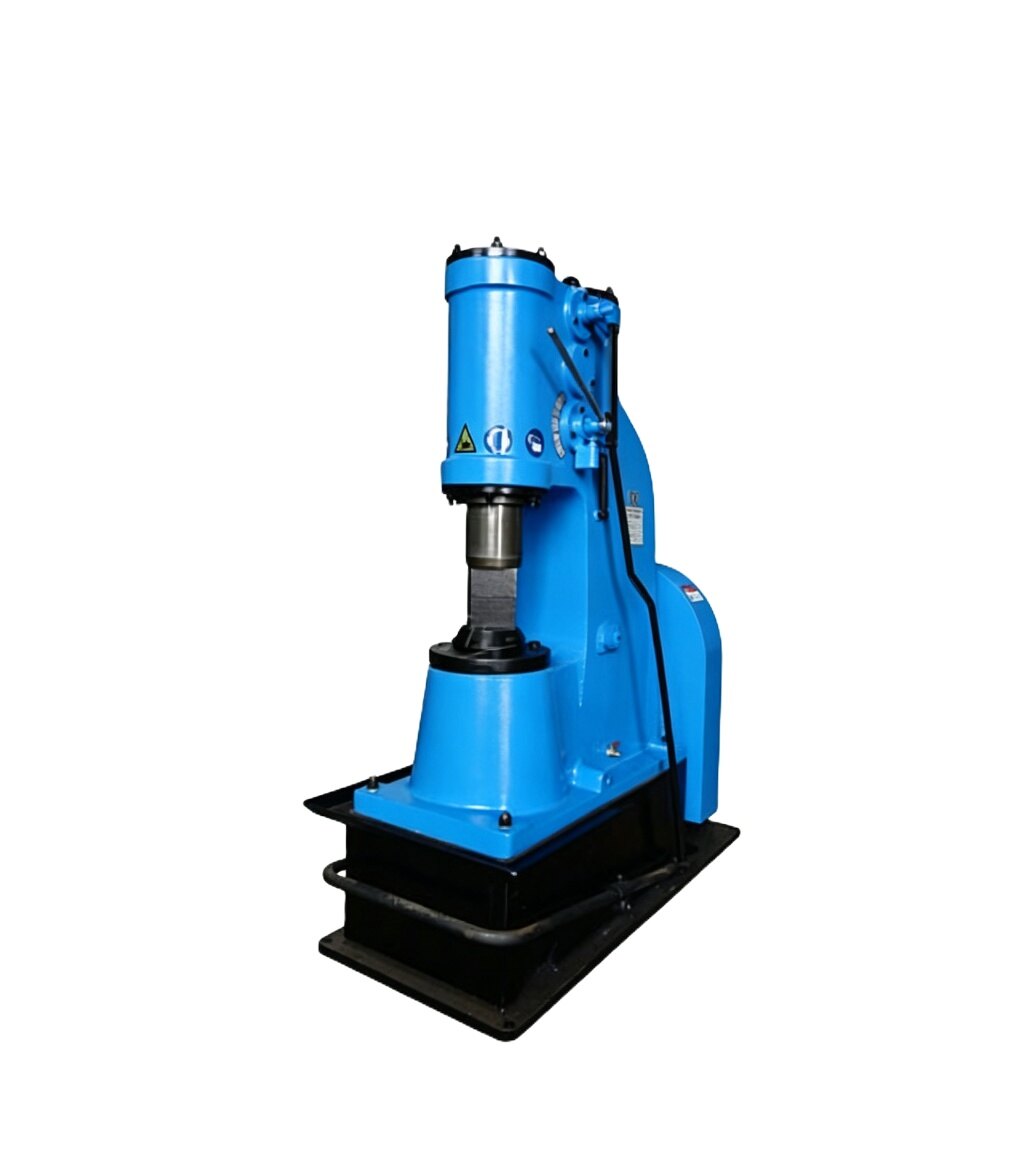

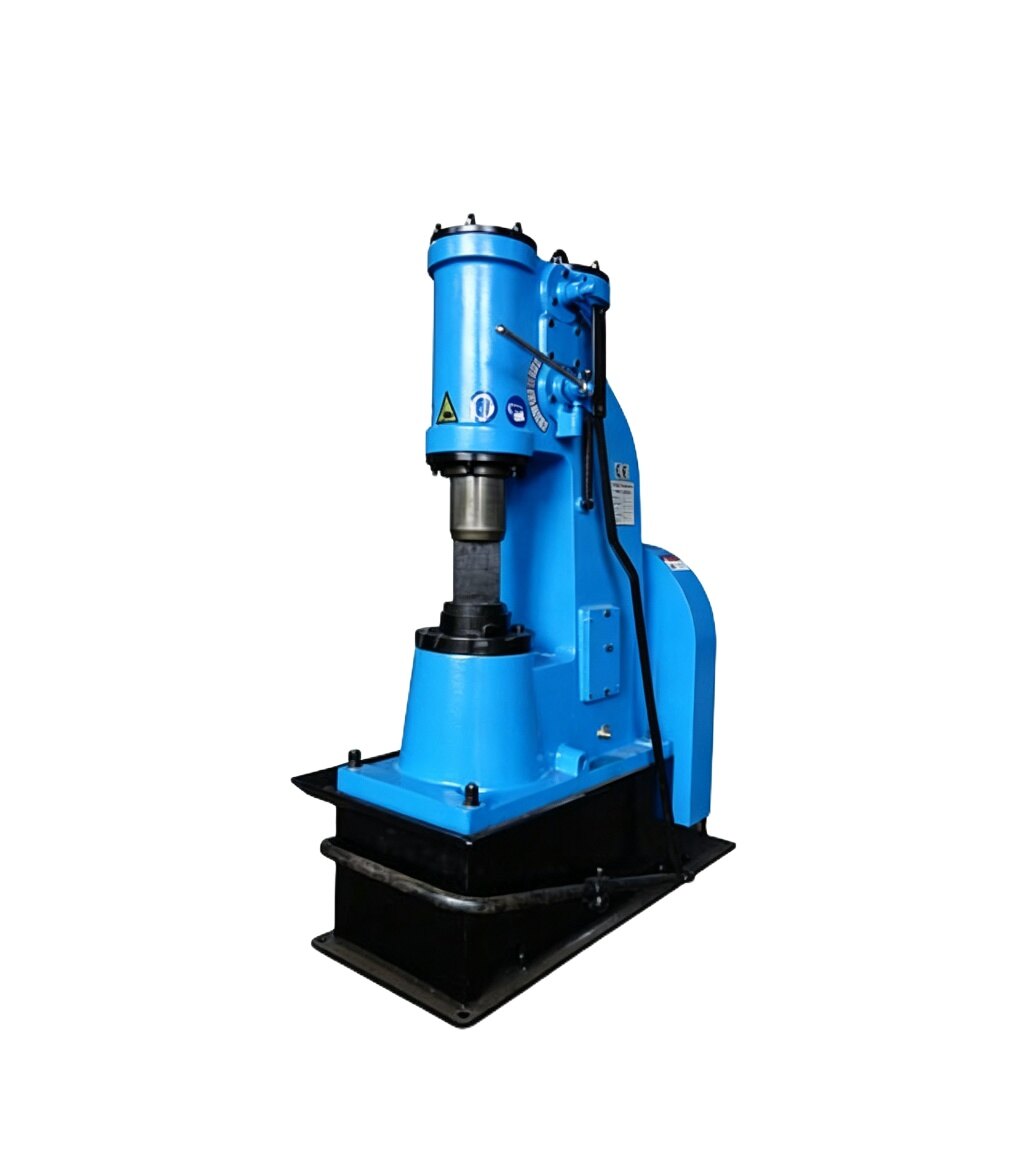

C41 Self-Contained Series
Independent body with built-in air compression. Integrated cast body for high rigidity. Quick installation, simple operation, easy die change. Self-lubricating oil pump for low maintenance.
View Full Details for C41 单体系列
| Parameter | Unit | C41-100D | C41-16D | C41-20D | C41-25D | C41-40D | C41-75D |
|---|---|---|---|---|---|---|---|
Falling Weight 落下重量 | kg | 100 | 16 | 20 | 25 | 40 | 75 |
Striking Energy 打击能量 | kJ | 1.8 | 0.18 | 0.22 | 0.27 | 0.53 | 1.0 |
Ram Center to Body Distance 锤头中心到机身的距离 | mm | 300 | 150 | 180 | 200 | 235 | 300 |
Working Height 操作空间 | mm | 340 | 180 | 200 | 240 | 245 | 300 |
Blow Rate 打击次数 | times/min | 190 | 258 | 255 | 250 | 245 | 210 |
Forgeable Square Steel 方钢 | mm | 110×110 | 20×20 | 30×30 | 40×40 | 52×52 | 65×65 |
Forgeable Round Steel 圆钢 | mm | φ120 | φ22 | φ35 | φ45 | φ68 | φ85 |
Motor Power Single-Phase 电机功率-单相 | kW | / | 1.5 | 2.2 | 3 | 5.5 | / |
Motor Power Three-Phase 电机功率-三相 | kW | 11 | 1.5 | 2.2 | 2.2 | 4 | 7.5 |
Motor Speed 电机转速 | rpm | 960 | 1440 | 1440 | 1440 | 1440 | 1440 |
Overall Dimensions L×W×H 外形尺寸 | mm | 1500×750×2150 | 660×420×970 | 820×460×1110 | 980×510×1200 | 1080×600×1430 | 1420×720×2050 |
Total Weight 总重 | kg | ≈2400 | ≈240 | ≈380 | ≈560 | ≈880 | ≈2260 |
